CST25N06 Description:
CST25N06 is a fast switching Mosfet for N-channel with BVDSS=60V, RDSON=28mΩ, and ID=25A. Provide TO252 packaging.
The CST25N06 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST25N06 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST25N06 Features:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST25N06 Product Summary:
|
BVDSS
|
RDSON
|
ID
|
|
60V |
28mΩ |
25A |

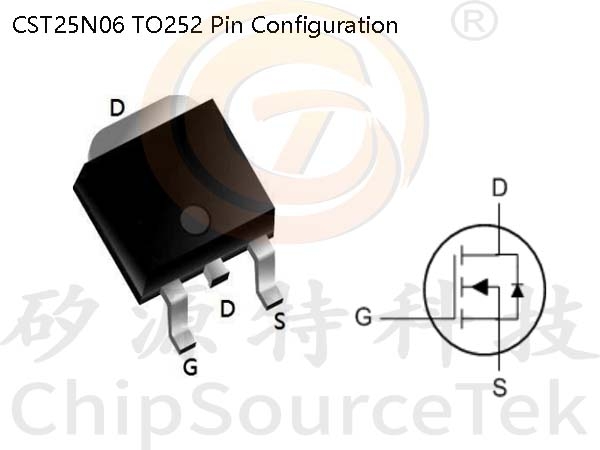

CST25N06 TO252 Pin Configuration:

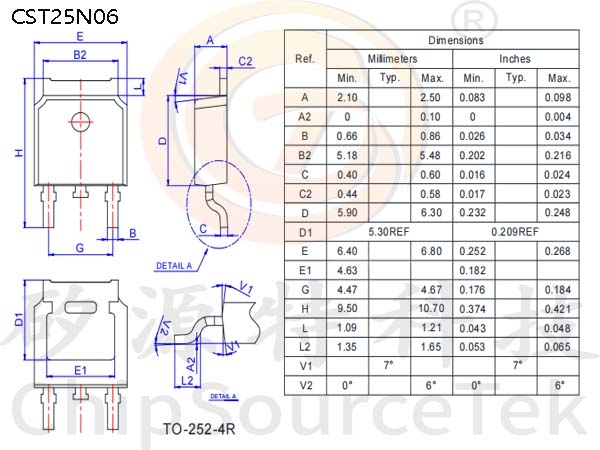

CST25N06 Package Mechanical Data-TO-252:

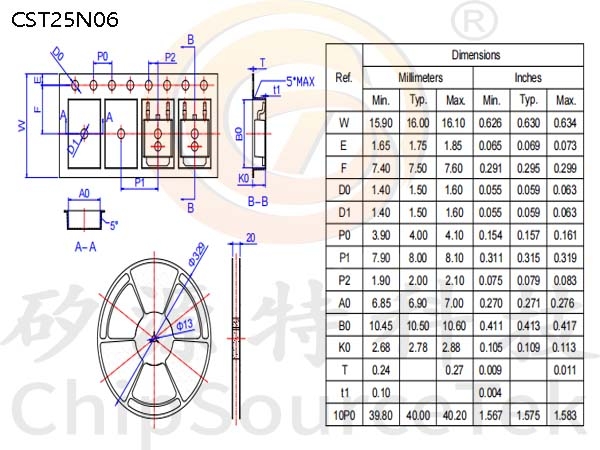

CST25N06 Reel Spectification-TO-252:
